آلة قطع ألياف الليزر Trumpf TruLaser 5030 fiber L76 FMC

This 3-axis TRUMPF TruLaser 5030 fiber L76 FMC was manufactured in 2022. It features a working format of 3,000 x 1,500 mm and a powerful 6000W solid-state disk laser. The machine includes an automatic longitudinal pallet changer and advanced cutting capabilities, such as adaptive lens systems and automatic nozzle changers. If you are looking to get high-quality fiber laser cutting capabilities, consider the TRUMPF TruLaser 5030 fiber L76 FMC machine we have for sale. Contact us for further details.
Location: PL
Control Brand: SIEMENS
Control Model: SINUMERIK 840D sl
Laser Power: 6 kW
Working format/area: 3,000 x 1,500 mm; X 0–3,000 mm / Y 0–1,500 mm / Z 0–115 mm
Machine design: Closed machine frame; gantry drive with direct linear drives; automatic longitudinal pallet changer; integrated control cabinets and storage cabinet; working-area lighting; machine status light; water/air machine and laser chiller; CE compliant; ambient temp 5–35 °C
Dynamics/accuracy: Max simultaneous axis speed 280 m/min; Ps 0.03 mm; Pa 0.05 mm; min programmable increment 0.001 mm
CNC control: Siemens SINUMERIK 840D sl with 21.5" color MultiTouch; MultiTouch HMI; USB and RJ45; integrated technology data; programmable cutting gas/pressure; production planning; multi-sheet processing; automatic shutdown; Remote Support interface; Condition Guide; Cutting Guide; Central Link; Online Update Manager
Laser source: TRUMPF TruDisk 6001 (6 kW) solid-state disk laser; fiber-optic beam delivery; one LLK output; closed beam guidance; high back-reflection resistance; stable output over service life
Cutting head: Universal cutting unit; single cutting-head strategy; adaptive lens system; protective glass with online condition monitoring; auto nozzle centering; collision protection; capacitive height control; automatic focal position; pilot laser
Standard cutting functions: AdjustLine; BrightLine fiber; ControlLine; FastLine; FlyLine; FocusLine; NitroLine; PierceLine; Performance package; Highspeed cutting package; Copper and Brass cutting packages; Micro-weld
Additional cutting package: Highspeed Eco (fusion cutting, medium-thickness stainless steel) with up to 70% cutting-gas reduction and up to 100% sheet throughput increase
Automatic nozzle changer: 21 positions; automatic change/cleaning/re-setting tied to material/process; reduces setup/handling
Drop&Cut: Integrated camera; assigns live image of residual sheet to part geometry; live cutting preview; no separate programming needed for basic use
Process monitoring camera: Front-area monitoring (~2.5 m); remote observation; preliminary result assessment; video stream output to external monitor

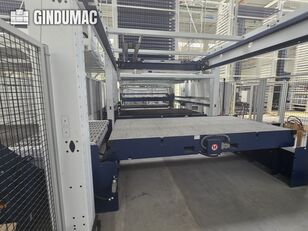

Pallet/material handling (machine-integrated): Automatic longitudinal pallet changer; loading/unloading parallel to machining; pallet access from three sides
With rake lifter: max thickness 25 mm; with rake lifter + belt system: max thickness 15 mm
Minimum part size with rake lifter: 150 x 150 mm
Linear version: linear axis for travelling gripper frame
PartMaster at portal station: ergonomic sorting of finished parts and skeletons; suitable up to approx. 12–12.7 mm sheet thickness
Additional equipment

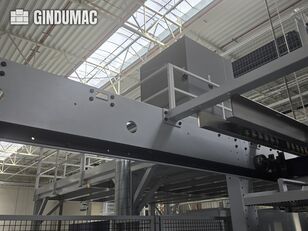

LiftMaster Compact 1530 (AL34) automatic loading/unloading system
Type 1530
max sheet 3,000 x 1,500 mm
min sheet 1,000 x 1,000 mm
Max sheet thickness 25 mm
max sheet weight 900 kg
max unloading weight 900 kg
LiftMaster equipment/options
Storage connection
extended pallet travel out of machine
Sheet separation device
double-sheet detection
synchronous loading
Thin-sheet separation (0.8–2.0 mm)
loading station for 90 mm stack height
Structural-steel loading grippers
67 mm pitch
replaceable tines
Finished-parts pallet
structural-steel unloading grippers
33.5 mm tooth spacing
Additional portal station
Storage integration
STOPA storage connection
machine prepared for automated storage integration
storage interface
TC-CELL / TruTops Fab Module Storage for fully automatic material and production flow
Raw-material and finished-sheet data exchange
Safety equipment for storage connection including second safety light-barrier circuit
Engineering/system design by TRUMPF and STOPA
